Microplate elisa reader, Microplate elisa washer,
Microplate Luminometer and incubator-shaker

As a stand-alone microplate reader, the DAx800 is designed for applications within the clinical, biotechnology and research areas. The onboard data reduction surpasses many computer software packages with its extensive curve-fitting, cutoff calculation, data transformation and validation capabilities. The DAx800 interfaces with Diagnostic Automation Data Analysis Software for even more flexibility in data analysis and reporting.
Microplate Types: Flat-bottom 96-well plates, all 384-wellplates and 1 x 8 flat-bottom strips (16-channel) All 96-well plates, 1 x 8 strips (8-channel) All 96-well plates, 1 x 12 strips (12-channel)
Manifold: 16-channel patented Dual-Action, with separate dispense/aspiration (16-channel) 8-channel aspiration/dispense (8-channel) 12-channel aspiration/dispense (12-channel
Volume Range: 25 to 3000 μl per well
SterIliization: Chemical
Soak Time: 1 to 600 Seconds
Power: 100 to 240 VAC, 50 to 60 H

DAI recognized leadership in full-plate microplate washers extends to the DLx50 Auto Strip Washer. The DLx50’s compact footprint contains a powerhouse of washing capabilities unsurpassed in its class. The washer’s excellent dispense accuracy and evacuation efficiency supports 96- and 384-well strip or plate washing. Comprehensive and easy-to-use onboard software provides the utmost flexibility for a variety of applications.
Microplate Types: Flat-bottom 96-well plates, all 384-wellplates and 1 x 8 flat-bottom strips (16-channel) All 96-well plates, 1 x 8 strips (8-channel) All 96-well plates, 1 x 12 strips (12-channel)
Manifold: 16-channel patented Dual-Action, with separate dispense/aspiration (16-channel) 8-channel aspiration/dispense (8-channel) 12-channel aspiration/dispense (12-channel)
Volume Range: 25 to 3000 μl per well
SterIliization: Chemical
Soak Time: 1 to 600 Seconds
Power: 100 to 240 VAC, 50 to 60 H

The MPL1 Microplate Luminometer is an affordable but high quality instrument with basic functionality. It incorporates all important functions necessary to perform glow luminescence measurements and it is suitable for all applications which require a very high dynamic range, but not extremely high sensitivity. Due to the concentration on the few critical functionalities, the instrument is available for a very attractive price. CE certified.

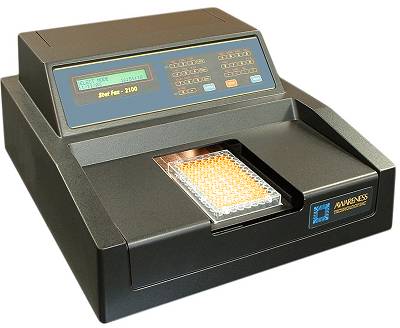

Fully automatic. Bichromatic optics. Standard model includes four filters; six filters are available for a nominal charge. On board data reduction calculations include regressions, curve fitting and cutoff absorbance calculations with step-by-step user prompting. Large, non-volatile memory stores at least 50 user tests. Includes parallel and serial outputs. Operates with or without a computer. A bi-directional accessory is available for linking to IBM compatible computer. NRTL and CE certified.

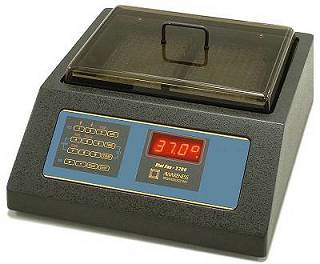

Holds two 96 well microplates. Digitally controlled 8-speed shaker with orbital mixing from 575 to 1500 rpm. Temperature adjustable from ambient to 40°C with resolution of 0.1°C. Digital timer controls shaking or can be operated independently as a timer. Compact and easy to operate. Outer tinted cover provides further insulation and protection from light. NRTL and CE certified.

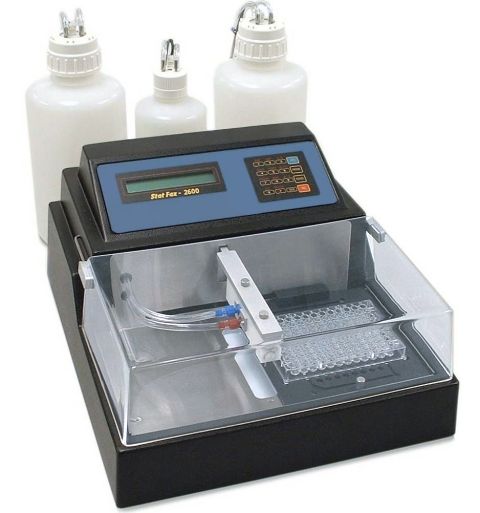

Stat Fax 2600 Microplate Washer
Fully automatic. Washes flat, round, V-bottom plates and strips. No user adjustments required. Automatic calibration, alignment, and last row detection. Large, non-volatile memory stores at least 50 user wash protocols. Precision operation with constant monitoring of vacuum and pressure. Pump cycles only when necessary for quiet operation. Programmable automatic rinse cycle. Ready to run: bottles, aerosol shield, 8-way manifold included. 12 and 16 position wash heads available as accessories. NRTL and CE certified

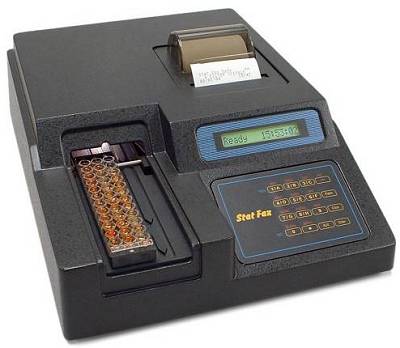

Stat Fax 303+ Microstrip Reader
Automatic strip transportation. 3-strip loading capacity or break-apart, single, and double strips. The carriers come in two styles, 3x12 for break-apart microwell strips, and an optional 3x8 for non-break-apart microwell strips. Bichromatic optics. Standard model includes four filters; six filters are available for a nominal charge. Easy to use with step-by-step prompting and on-board graphics printer. Log-logit mode and other programming enhancements. On-board software calculates single & multi-point calibration curves, regressions, & a variety of cutoff options. Large non-volatile memory stores more than 50 user-entered tests. NRTL and CE certified.

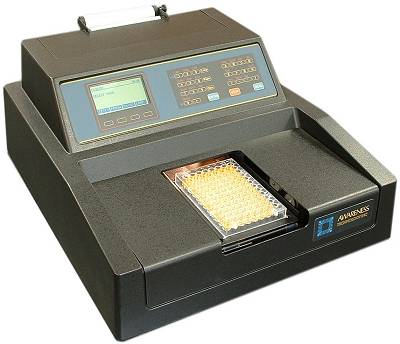

AStat Fax 3200 Microplate Reader
With On-Board Printer
Fully automatic. Bichromatic optics. Standard model includes four filters; six filters are available for a nominal charge. On board data reduction calculations include regressions, curve fitting and cutoff absorbance calculations with step-by-step user prompting. Large, non-volatile memory stores over 100 user tests. Includes parallel and serial outputs. New larger display with graphics capability. Optional onboard printer.NRTL and CE certified.

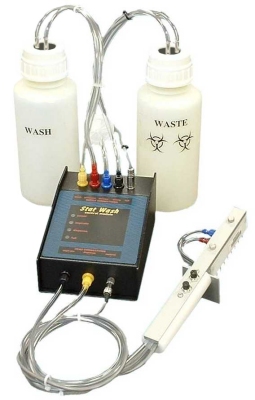

Stat Wash Microwell Washer
No more squirt bottle washing. Reduce exposure to the potential dangers of splashing biohazards with Stat Wash™, an economical instrument designed to wash immunoassays in microwell strips and plates with professional precision. Washing 8 wells simultaneously is faster too. Aspirating and dispensing are controlled by push buttons. Easy to use and maintain, Stat Wash™ includes an 8-probe manifold, a 1L wash bottle, and a 1L safe plastic bottle with a full sensor. Stat Wash™ is CE certified. If your lab doesn’t need an expensive automated instrument, simply switch to Stat Wash™ for clean, fast, and precise results.

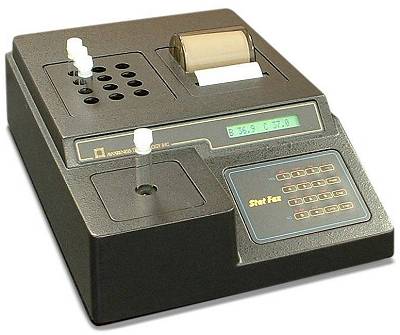

Bichromatic optics. Six filters standard.
Easy to use with step-by-step prompting and on-board graphics printer.
12 station 37°C incubation block and temperature controlled read well. Cuvette size is 12mm by 75mm.
Performs both endpoint and kinetic assays.
Large non-volatile memory stores approximately 60 user programs.

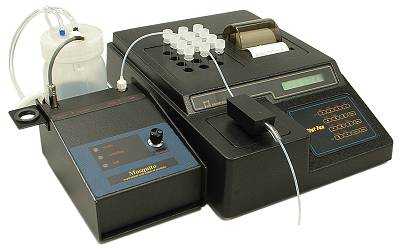

With Mosquito™ flowcell accessory you can read volumes as small as 250 microliters.
CE certified.
Stat Fax® readers use IAD filters.

Powered and controlled from the 1904 - no external power supply needed.
Sample volumes from 250uL to 500uL, keyboard selectable.
Internal vacuum pump.
Cables and connectors included.

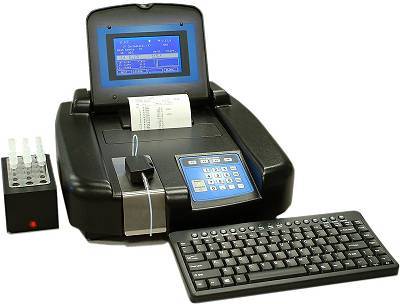

Flip-up display screen.
Large 240 x 128 pixel graphical display.
Plug in standard external keyboard for easier data entry (sold separately).
Use 40-column on-board thermal printer, external printer, or PC.
Create a work list, run tests, print patient reports. Stores patient data.
Shows kinetic plots in real time.
Stores control values and creates Levey-Jennings plots for QC.
Optical system is temperature controlled to 37C.
Bichromatic w/ 6 filters and spaces for 2 optional filters (340-700nm).
Adapts to use 12 mm round tubes, 1 cm square cuvettes, or built in flow cell.
Vacuum system speeds sampling and reduces carryover.
Calibration traceable to NIST standard.
Stat Fax® readers use IAD filters.
3600 Incubation Block

Optional Accessory for the Stat Fax® 3300
Incubates 18 Tubes at 37°C.
LED at front indicates heating function.
Temperature displays on 3300 screen .

Automatic strip transportation.
3-strip loading capacity for 8-well or 12-well strips.
Easy to use with step-by-step prompting and on-board graphics printer.
On-board software calculates RLU's, multi-point calibration, and regression curves.
Large non-volatile memory stores more than 100 user-entered tests.

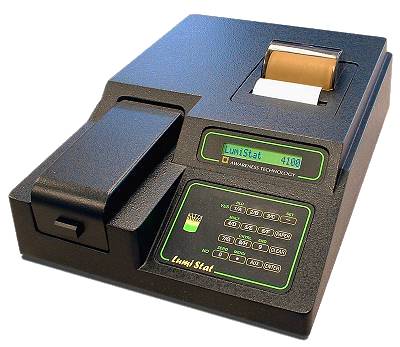

The increased range and sensitivity of CLIA (Chemi Luminescent Immuno Assays) is no longer just for high volume labs. LumiStatTM, the first CLIA micro strip reader, brings this technology to any size lab. LumiStatTM reads break-apart wells up to 12 wells per strip, and calculates results instantly and automatically. LumiStatTM is an open system, allowing users to program a wide variety of glow-type CLIAs. Test names and parameters are stored in a large on-board memory for easy recall.

Simply select an assay from the stored menu, load the strips, and close the door. LumiStatTM automatically blanks and advances the strip well by well, precisely measuring and reporting the light output from each. LumiStatTM runs hormones and many other applications with on-board calculations for point-to point, linear and log regressions, and log logit modes. A built-in reference assures continuous calibration.

NRTL and CE certified.
